Detroit Speed Powdercoated Hydroformed Subframe - Single Adjustable Shocks - Small Block Chevy/LS 032014-SDS

1970-1981 Chevrolet Camaro/Pontiac Firebird

Detroit Speed

SKU
032014-SDS
$10,728.95
Adding to cart… The item has been added

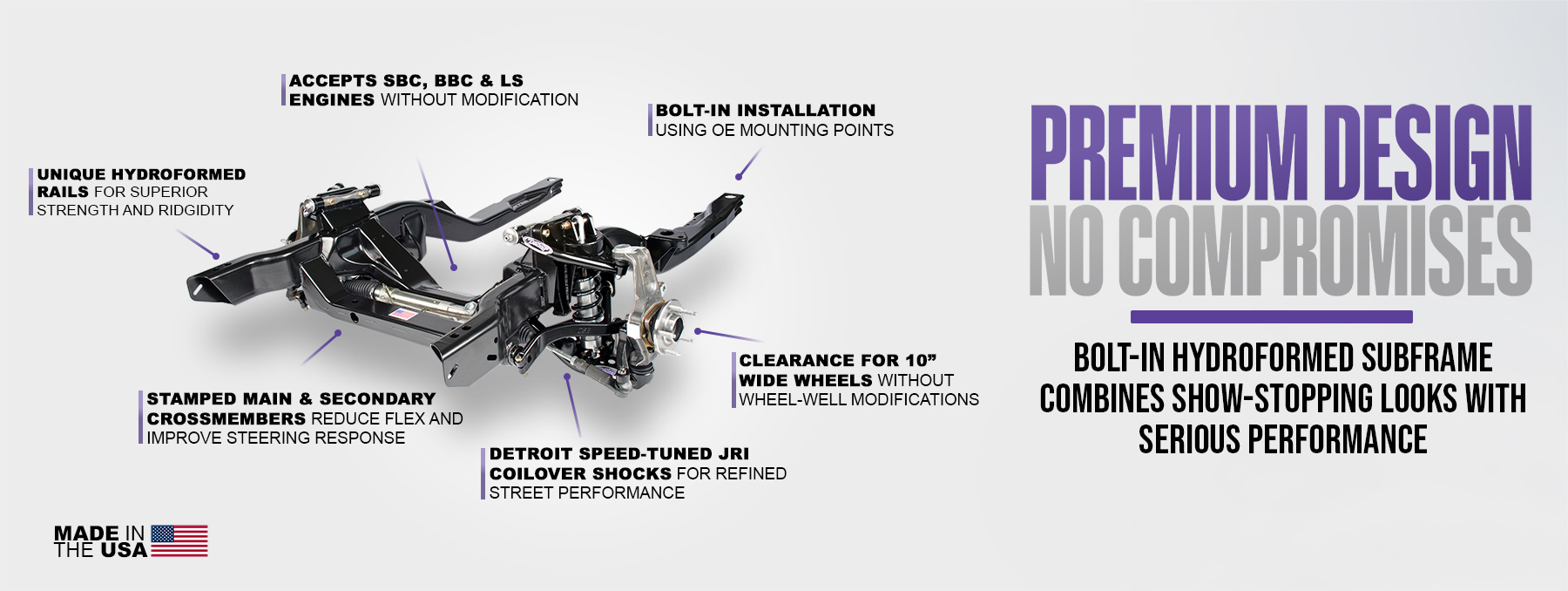

Detroit Speed's front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing DSE's unique suspension geometry. It is the ONLY subframe in the aftermarket industry with hydroformed frame rails. The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength. Spring Rate: 550lbs/in Spring Free Length: 8inUp to a 10" wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2, and LS7 engines have been designed as a direct bolt-in into this subframe. Our subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product! The subframe is available uncoated and unassembled for your SBC, BBC, LS, or Pontiac engine. We also offer the subframe powder coated satin black and assembled. Single Adjustable Shock: Includes all features of base shock with 'Detroit Tuned' valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street.

Features

  • Hydroformed Subframe Blends the Benefits of OEM Technology and Aftermarket Performance into One Product
  • Bolt-In Replacement for the Original Stock Subframe, Featuring Stamped Main and Secondary Cross-Members for Structural Rigidity
  • Unique DSE Suspension Geometry for Improved Handling and Ride Quality
  • Ideal for Use in Street Vehicles and on the Track
  • Choose from Non-Adjustable, Single Adjustable, Double Adjustable, or Double Adjustable Remote Reservoir Coil-Over Shocks
  • Choose from Springs for Small Block/LS/LT Engines (550 lbs/in), or Big Block Engines (650 lbs/in)
  • Choose from Powder Coated or Bare Subframe Finish

Fitment Notes

Subframe must ship freight. Must use at least 17" wheels that require a minimum inside wheel diameter of 16.250". For competition applications, the DSE rack & pinion fluid transfer conversion kit will replace the hardlines on your DSE rack & pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.

Specifications

  • fitment-subtitle1970-1981 Chevrolet Camaro/Pontiac Firebird
  • FinishPowdercoated
  • Product TypeHydroformed Subframe
  • Sale CategorySuspension and Chassis
  • Shock TypeSingle Adjustable
  • Spring Free Length8 IN
  • Spring Rate550lbs/in
  • Subframe FinishPowdercoated
  • Sway Bar Arm FinishBlack Powdercoated
  • ManufacturerDetroit Speed
  • California Proposition 65 RequiredYes
  • Control Arm FinishBlack Powdercoated
  • Emission Code5
  • EngineSmall Block/LS
  • Spring Free Length8IN
  • WarningCalifornia Proposition 65
